    PR series

Double universal joint with hard treatment

  • Brand Name :
    DJJX
  • Product Model :
    PR-HD23-12D-79
  • Product Series :
    PR series
  • Product Brief :
    Can be used as a linkage, or transmission, between two intentionally misaligned shafts, rather than just as a coupling .Lawn and garden equipment, Small marine vessels,Railroad rolling stocks, conveyors and ...
Advantages of DJJX’s Universal Joints, over those of other manufacturers:
· Many sizes available
· Max. angle 90 degree
· Available in various materials
· All subcomponents very precisely machined from bar: No cheap castings or powdered metal parts, resulting in better overall and more consistent performance

· Several subtle design innovations that optimize performance and reduce cost
· Could manufacture products according to your provided drawing or samples

Variations offered by DJJX Couplings:
· Materials for midsection: 20CrTi,20Cr
· Materials for hub: 20CrMo

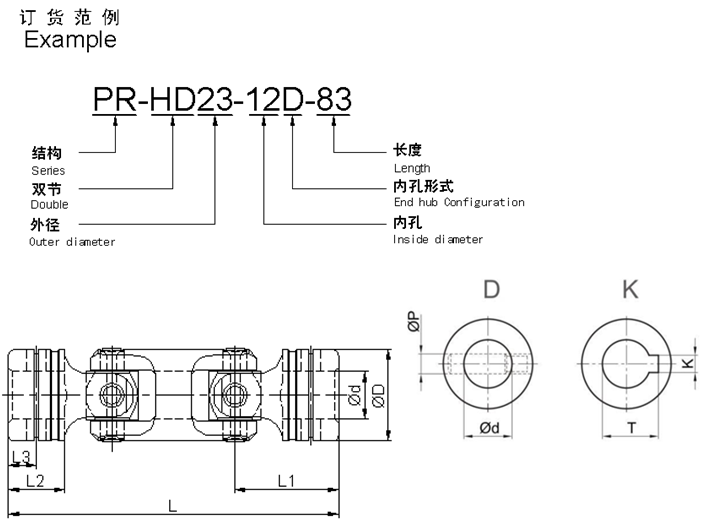

Part NO. ￠D ￠d
（H8）		 L L1 L2 L3 P
(H8)		 K
(JS9)		 T
PR－HD13 13 6 49.5 15.5 9 4.5 3
PR－HD16 16 8 58 18 10 5 3.5 2 9
PR－HD20 20 10 67.5 21 11 5 4 3 11.4
PR－HD23 23 12 83 26 14.5 7 5 4 13.8
PR－HD26 26 14 94.5 29.5 17 8.5 5.8 5 16.3
PR－HD30 30 16 117.5 37 22 11 6.5 5 18.3
PR－HD32 32 18 129 40.5 24 11.75 7 6 20.8
PR－HD36 36 20 139 43.5 25 12.5 8 6 22.8
PR－HD40 40 22 150 47 27 13.5 9 6 24.8
PR－HD44 44 25 168 52.5 30 15 10 8 28.3
PR－HD50 50 30 195 61 35 17.5 11.5 8 33.3
PR－HD59 59 35 224 70 40 20 13 10 38.3
