    CN series

CN-S5

  • Brand Name :
    DJJX
  • Product Model :
    CN-S5
  • Product Series :
    Forged Universal Joints
  • Product Brief :
    Generally used as a linkage between two misaligned shafts at a large angle. The needle bearing universal joint is fitted with lubricated needle bearings.
Typical applications:
Generally used as a linkage between two misaligned shafts at a large angle. The needle bearing universal joint is fitted with lubricated needle bearings.

Advantages of DJJX’s Universal Joints:
Maintenance free bearings
Choice of solid hubs, bored hubs or bored with keyway connection
Max. angle 35 degree
Max. speed – 4000 rpm
Available in various materials
All components CNC machined with precision from steel bar: No cheap castings or powdered metal parts, resulting in better overall and consistent performance
Subtle and clever design innovations that optimize performance while minimizing costs
Ability to manufacturer according to your provided drawing or samples

Variations offered by DJJX:
Materials for midsection: o8F, 20Cr
Materials for hub: 40Cr, 45# steel

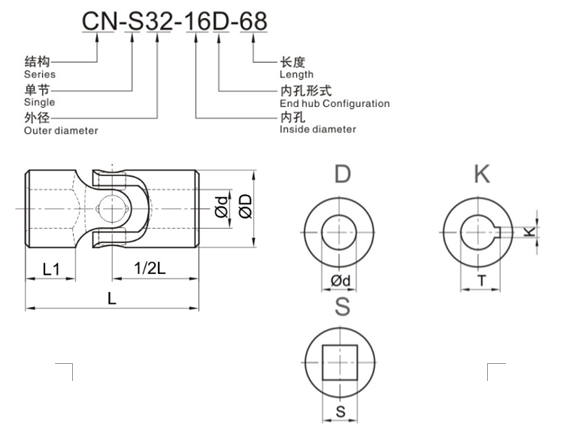

Part NO. ￠D  ￠d  L  L1  1/2L  S  K T
（H7）  (H11)  (JS9)
CN-S36  36  18  78 21.5 39 18  6  20.8
CN-S40  40  20  86 22  43  20  6 22.8
CN-S50  50  25  108 28 54 25  8 28.3
