    NB series

NB-S1

  • Brand Name :
    DJJX
  • Product Model :
    NB-S1
  • Product Series :
  • Product Brief :
    Can be used as a linkage, or transmission, between two intentionally misaligned shafts, rather than just as a coupling .
Typical applications:
Can be used as a linkage, or transmission, between two intentionally misaligned shafts, rather than just as a coupling .

Advantages of DJJX’s Universal Joints, over those of other manufacturers:
Roller bearings lubricated for life
Select from solid hubs, bored hubs and bores with keyways
Max. angle 90 degree
Max. speed - 2000 rpm
Available in various materials
All subcomponents very precisely machined from bar: No cheap castings or powdered metal parts, resulting in better overall and more consistent performance
Several subtle design innovations that optimize performance and reduce cost
Could manufacture products according to your provided drawing or samples

Variations offered by DJJX Couplings:
Materials for midsection: o8F,20Cr，40Cr
Materials for hub: 40Cr/45#steel
Materials for pin: GCr15/20Cr

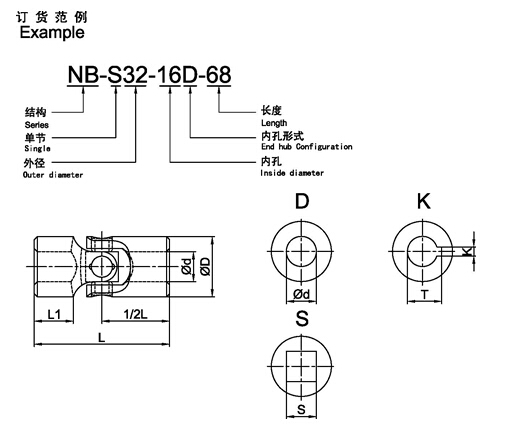

Part NO. ￠D  ￠d  L  L1  1/2L  S  K T
（H7）  (H11)  (JS9)
NB-S25  25  12  56  15.5  28  12  4  13.8
NB-S28  28  14  60  16  30  14  5  16.3
NB-S32  32  16  68  17.5  34  16  5  18.3
NB-S36  36  18  78  21.5  39    6  20.8
NB-S40  40  20  82  21  41    6  22.8
NB-S50  50  25  108  28  54    8  28.3
