PR-S1

  • Brand Name :
    DJJX
  • Product Model :
    PR-S1
  • Product Series :
  • Product Brief :
    Can be used as a linkage, or transmission, between two intentionally misaligned shafts, rather than just as a coupling .Lawn and garden equipment, Small marine vessels,Railroad rolling stocks, conveyors and ...
Typical applications:
Can be used as a linkage, or transmission, between two intentionally misaligned shafts, rather than just as a coupling .Lawn and garden equipment, Small marine vessels,Railroad rolling stocks, conveyors and material handling equipment and so on .

Advantages of DJJX’s Universal Joints, over those of other manufacturers:
Many sizes available
Max. angle 35 degree
Available in various materials
All subcomponents very precisely machined from bar: No cheap castings or powdered metal parts, resulting in better overall and more consistent performance
Several subtle design innovations that optimize performance and reduce cost
Could manufacture products according to your provided drawing or samples

Variations offered by DJJX Couplings:
Materials for midsection: 20CrTi,20Cr
Materials for hub: 20CrMo

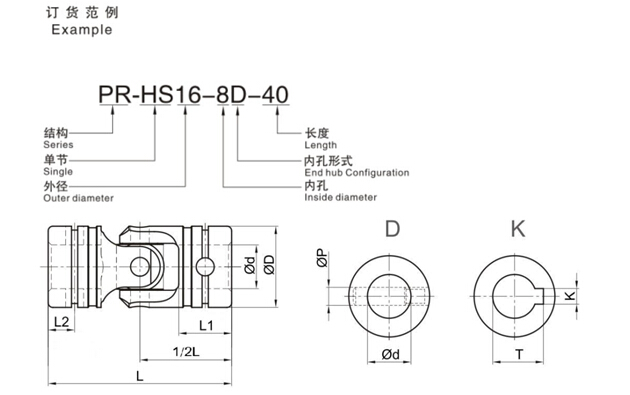

Part NO. ¢D ¢d
(H8)
L 1/2L L1 L2
(H8)
K
(JS9)
T
PR-HS13 13 6 31 15.5 9 4.5 3
PR-HS16 16 8 36 18 10 5 3.5 2 9
PR-HS20 20 10 42 21 11 5 4 3 11.4
PR-HS23 23 12 52 26 14.5 7 5 4 13.8
PR-HS26 26 14 59 29.5 17 8.5 5.8 5 16.3
PR-HS30 30 16 74 37 22 11 6.5 5 18.3
PR-HS32 32 18 81 40.5 24 11.75 7 6 20.8
PR-HS36 36 20 87 43.5 25 12.5 8 6 22.8
PR-HS40 40 22 94 47 27 13.5 9 6 24.8
PR-HS44 44 25 105 52.5 30 15 10 8 28.3
PR-HS50 50 30 122 61 35 17.5 11.5 8 33.3
PR-HS59 59 35 140 70 40 20 13 10 38.3
